Marine Bollards
Qingdao Seakong Marine Machinery Co., Ltd supplies a large wide range of Marine Bollard include Double Bollards, Single Crossing Bollards, Double Crossing Bollards, Recessed Shell Bitts, Escort Tug etc.
1) Double Bollards
STANDARD FEATURES
• Standard: NS2584,ISO13795,DIN82607,JISF2001,BSMA12,IMO1175,ISO3913
• Size: 125mm~800mm
• Weld Down Base
• Epoxy Primer Coating
OPTIONAL FEATURES
• Manufactured from Special Material for -25 ℃ / -40 ℃ / -50 ℃ / -60 ℃ low tempreture usage
• Can be quayside mounted
• Bolt Down Base

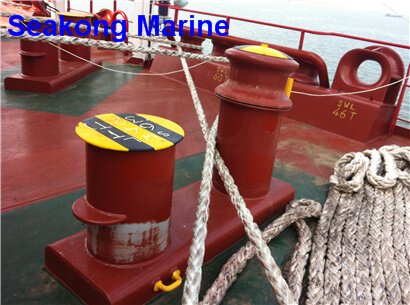

• Fitted with One or Two Guide Roller on top on request
• Stainless Steel Bollards and Aluminium Alloy Bollards are available
• Paint to your specifications
• IACS Cert

Download ISO13795-2012 Type A Double Bollards Catalogue

Download ISO13795-2012 Type B Double Bollards Catalogue

Download DIN82607 Double Bollards Catalogue

Download NS2584 Double Bollards Catalogue

Download BSMA12 Double Bollards Catalogue

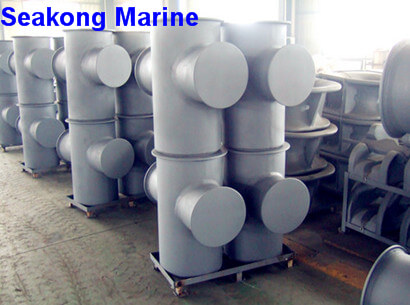

2) Single Crossing Bollards
STANDARD FEATURES
• Standard: JISF2804,ISO13797
• Size: 150mm~400mm
• Weld Down Base
• Epoxy Primer Coating
OPTIONAL FEATURES
• Manufactured from Special Material for -25 ℃ / -40 ℃ / -50 ℃ / -60 ℃ low tempreture usage
• Bolt Down Base
• Stainless Steel Bollards and Aluminium Alloy Bollards are available
• Paint to your specifications
• IACS Cert
Download Single Crossing Bollard ISO 13797 Catalogue

3) Recessed Shell Bitts
STANDARD FEATURES
• Standard: ISO 13799, JIS Standard, LMS type
• SWL: 5T~200T
• Material: high quality cast steel
• Epoxy Primer Coating
OPTIONAL FEATURES
• Welded Type
• Stiffening Plates on request
• Paint to your specifications
• Proof Load test
• ABS,LR,BV Certs are available

Download ISO13799 Recessed Bollard Catalogue

Download SKM Welded Recessed Bollard Type I Catalogue

Download Casted Type Recessed Shell Bitts SWL20T&SWL50T Catalogue

4) Escort Tug Bollard / Strong Point
STANDARD FEATURES
• Compliance with OCIMF Recommendations'' fittings for use with tugs'' 1st edition 2002
• Range: SWL100T, SWL200T
• Safety Factor:  2:1 ( MBL/SWL )
• Epoxy Primer Coating
OPTIONAL FEATURES
• Manufactured from Special Material for -25 ℃ / -40 ℃ / -50 ℃ / -60 ℃ low tempreture usage
• Under Deck Stiffening on request
• LR / ABS Type Approval Certificates
Download Escort Tug Bollard SWL200T Catalogue
