Product Details

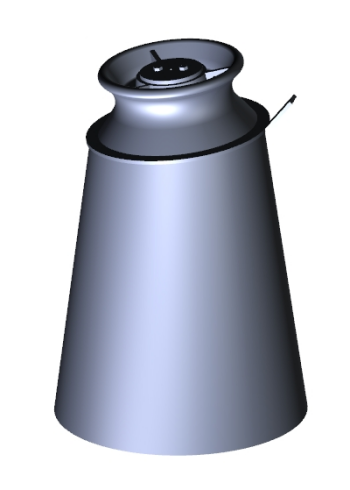

Pedestal Fairleads
Qingdao Seakong Marine Machinery Co., Ltd supplies the following pedestal fairleads.
STANDARD FEATURES
• Standard: JISF2014-87, VIS38 Type, DIN81907,ISO13776
• Size: 100mm~500mm
• Designed for breaking strength of wire with 180° wrap on roller
• Fitted with grease lubricated bronze bearings
• Suitable hardness on roller to ensure long-time life
• High strength roller pin for sufficient load capacity
• Epoxy Primer Coating
OPTIONAL FEATURES
• Stainless Steel Guide Roller for low tempreture usage on request
• Customized Mounting Base
• IACS certs
 |
Download Pedestal Fairleads ISO13776 |
JISF2014-87 Pedestal Roller
| Dia. Of Roller | Appropriate cable dia. | Dimensions(mm) | Weight(Kg) | |||||||||||
| 6x24 | 6x37 | Hemp Rope | Synthetic Fiber Rope | D1 | D4 | H | H1 | L | S | t | t1 | Roller | Stand | |
| 100 | 11 | 11 | 40 | 28 | 160 | 176 | 128 | 35 | 60 | 3 | 8 | 6 | 9.9 | 63.9 |
| 150 | 16~18 | 14~16 | 45 | 32 | 240 | 264 | 211 | 40 | 75 | 3 | 12 | 8 | 33.8 | 129 |
| 200 | 22 | 20 | 55 | 40 | 310 | 338 | 251 | 50 | 85 | 3 | 14 | 10 | 68 | 178 |
| 250 | 24 | 24 | 65 | 45 | 380 | 408 | 298 | 60 | 100 | 4 | 14 | 10 | 114 | 207 |
| 300 | 30 | 28 | 70 | 50 | 440 | 472 | 321 | 60 | 100 | 4 | 16 | 14 | 168 | 265.4 |
| 350 | 38 | 34 | 75 | 55 | 500 | 536 | 346 | 65 | 100 | 4 | 18 | 14 | 248 | 332 |
| 400 | 40~42 | 38~40 | 85 | 65 | 560 | 600 | 371 | 70 | 100 | 5 | 20 | 16 | 355 | 401.3 |
| 450 | 44 | 42~44 | / | 80 | 620 | 660 | 39 | 90 | 120 | 5 | 20 | 16 | 452 | 445.4 |
DIN81907 Pedestal Roller
| Type | H | TUBE (DxS) | Weight (kg) |
| 3 | 200 | 355.6x12.5 | 68 |
| 3 | 400 | 355.6x12.5 | 89 |
| 3 | 600 | 355.6x12.5 | 111 |
| 3 | 800 | 355.6x12.5 | 132 |
| 5 | 200 | 457.2x12.5 | 117 |
| 5 | 400 | 457.2x12.5 | 144 |
| 5 | 600 | 457.2x12.5 | 172 |
| 5 | 800 | 457.2x12.5 | 199 |
| 8 | 200 | 558.8x12.5 | 209 |
| 8 | 400 | 558.8x12.5 | 242 |
| 8 | 600 | 558.8x12.5 | 276 |
| 8 | 800 | 558.8x12.5 | 310 |
| 12 | 200 | 660.4x14.2 | 325 |
| 12 | 400 | 660.4x14.2 | 370 |
| 12 | 600 | 660.4x14.2 | 415 |
| 12 | 800 | 660.4x14.2 | 460 |
| 20 | 200 | 660.4x17.5 | 460 |
| 20 | 400 | 660.4x17.5 | 516 |
| 20 | 600 | 660.4x17.5 | 571 |
| 32 | 200 | 812.8x16 | 748 |
| 32 | 400 | 812.8x16 | 810 |
| 32 | 600 | 812.8x16 | 873 |
