Towing gears are normally used for moving Non-self-propelled Marine engineering operation ship, Dredger, Floating Dock,Offshore Plateform,VLCC etc.

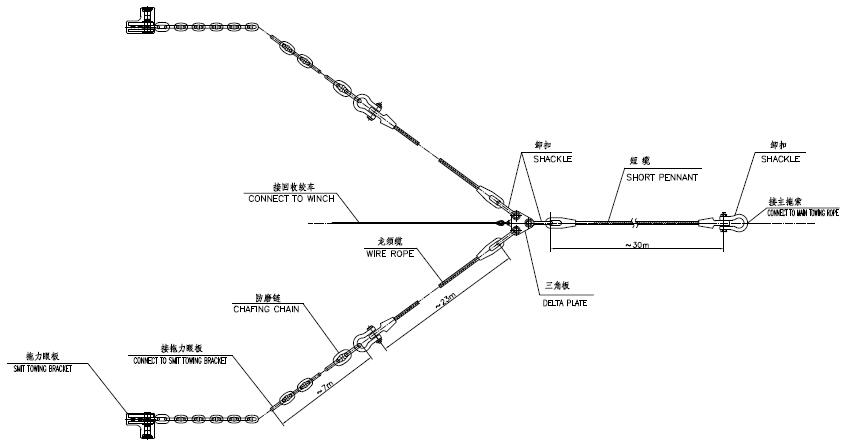

A basic aft towing arrangement is normally consist of Towing Bracket, Towing Fairlead,Chafe Chain, Joining Shackle, Bridle Wire Rope, Delta Plate,Intermediate Pennant ( Short Pennant ),Main Towing Line,Float Line, Buoy etc.
Qingdao Seakong Marine Machinery Co.,Ltd is able to design a whole set towing gears as per bollard pull etc.

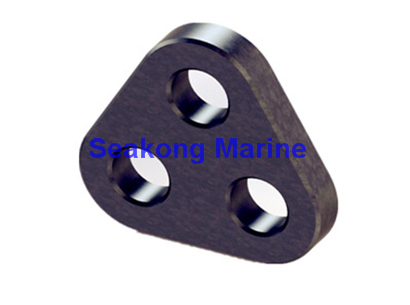

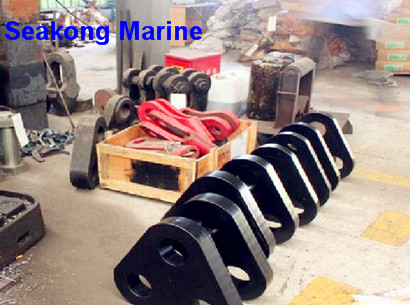

Delta Plate

STANDARD SPECIFICATIONS
• Material: forged from high tensile steel
• Safety Factor:  5:1
• Finish: black paint or on request
• Cert:  Material Cert 3.1, Material Cert 3.2, Proof Load Test Cert
OPTION
• Design or custom as required breaking load or chain size or bollard pull
• 3rd party inspection cert, such as DNV,LR,ABS,BV,RINA,RMRS,NK etc

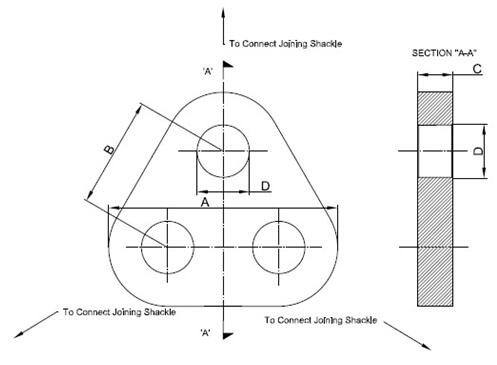

Chain Size (mm)	A	B	C	D	ProofLoad (Ton)	Breaking Load (Ton)	Weight (Kg)
38	320	168	50	76	81.2	106	13
48	360	184	60	88	127	181	25
58	430	225	80	102	190	287	50
70	506	266	90	120	270	404	81
76	550	290	90	130	313	472	96
83	600	316	100	142	356	549	127
95	685	361	120	162	508	794	199
102	736	388	120	174	594	910	230
