    Product Details
    We supply high quality Anchors for mooring buoy system, such as Flippler HHP Delta Anchor,Danforth Anchor,MK5 Anchor etc.

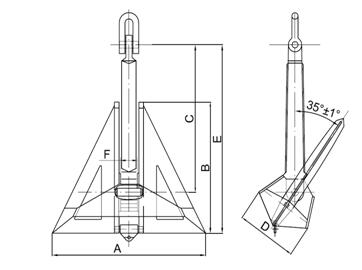

    Flipper Delta Anchor


    Nominal Weight
    (kg)    		 Dimensions (in mm)
    A B C D E F
    300 1200 960 1080 457 1380 45
    500 1500 1200 1350 571 1725 50
    1000 1875 1500 1686 714 2155 62
    1080 1915 1350 1686 722 2200 62
    2000 2363 1890 2124 900 2715 82
    3000 2700 2160 2430 1028 3105 90
    4000 2975 2380 2676 1133 3420 100
    5000 3250 2600 2922 1238 3735 110
    7000 3575 2860 3216 1361 4100 117
    7500 3650 2925 3290 1390 4210 117
    8000 3730 2900 3360 1420 4300 130
    9000 3950 3160 3555 1504 4543 135
    10000 4100 3280 3690 1561 4715 140
    12000 4490 3575 4030 1695 5320 145
    13500 4670 3720 4195 1765 5535 150
    15000 4845 3875 4355 1830 5735 150
    18000 5140 4080 4610 1940 6080 160
    20000 5330 4260 4790 2010 6310 170
    22500 5490 4360 4905 2060 6470 180
    25000 5740 4590 5160 2165 6795 195

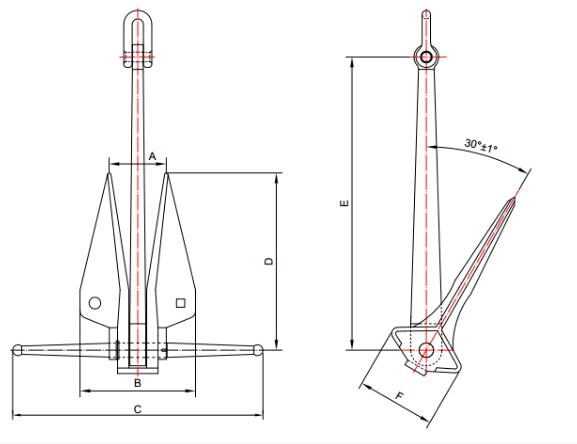

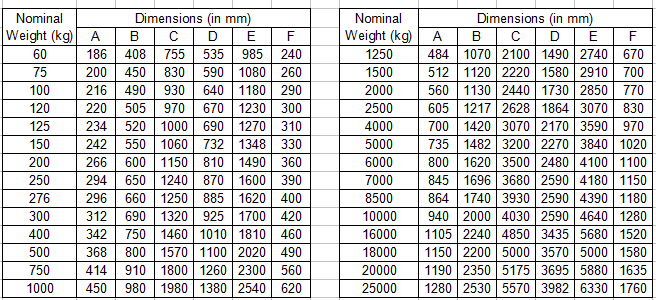

    Danforth Anchor

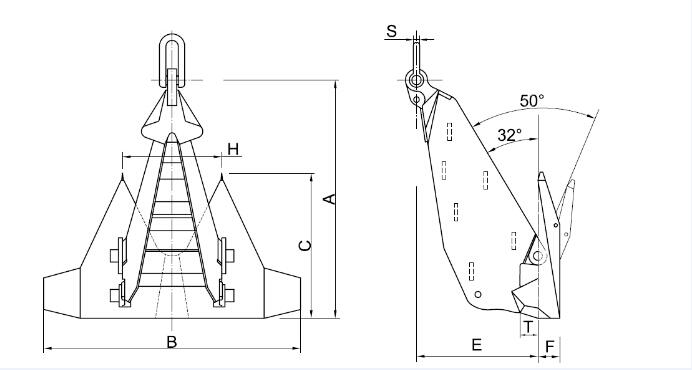

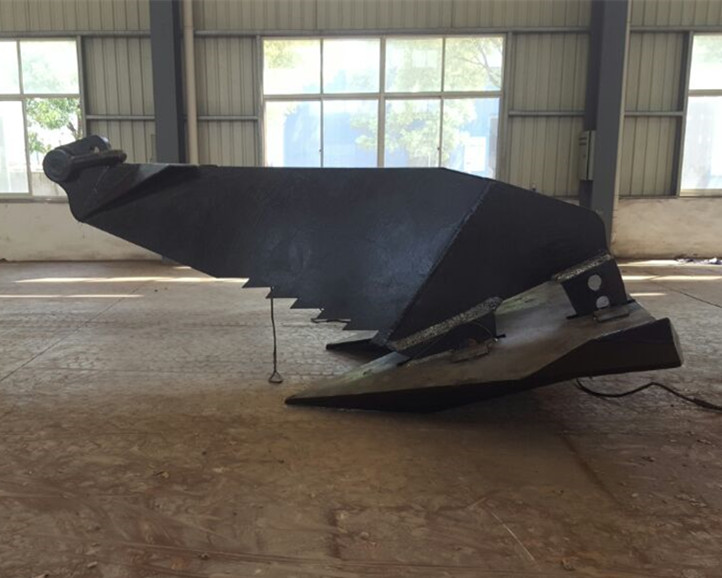

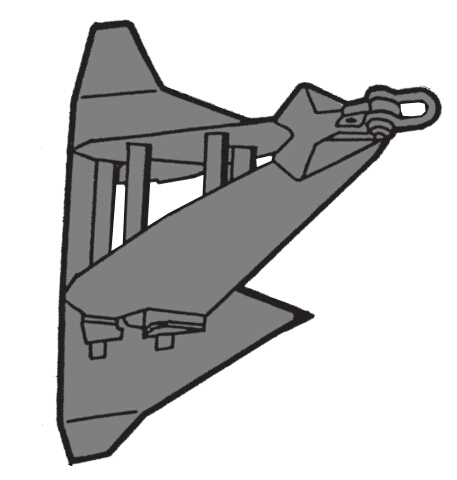

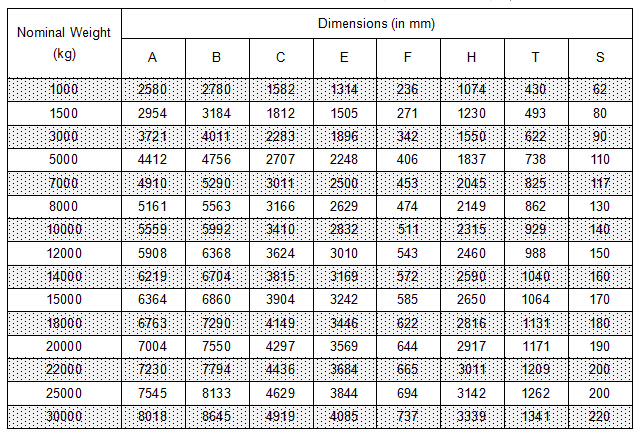

    MK5 Anchor
