Product Details

Single Point Mooring System

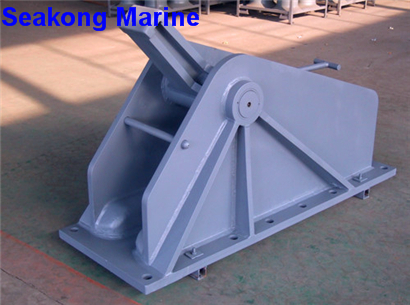

According to OCIMF regulation, SPM system should be euipped with head fast,chafe chain,pick up line and flotation devices also including bow chock,bow chain stopper, pedestal roller on the board.
                                                                                                              Chafe Chain & Chain Stopper Configuration Table
DWT
(Ton)
Chafe Chain dia.
(mm)
Quantity
(Pcs)
SWL
(Ton)
<150000 76 1 200
≥150000~<350000 76 2 200
≥350000 76 2 250

1Above 150000 DWT Bow Mooring Fittings Arrangement
→Two closed type chocks should be equipped on the bow and the distance between centres is 2m~3m
→Chain stoppers have a equidistance from bow chock and the distance between front end of chain stoppers and chock is 2.7m~3.7m
→Behind each chain stopper should be equipped a pedestal roller and the distance between chain stopper and pedestal roller is at least 4.5m

2Below 150000 DWT Bow Mooring Fittings Arrangement
→Chain stoppers have a equidistance from bow chock and the distance between front end of chain stoppers and chock is 2.7m~3.7m

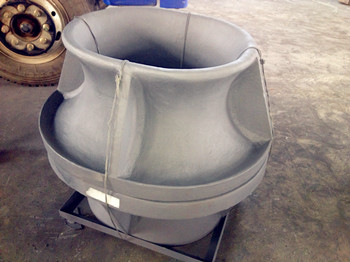

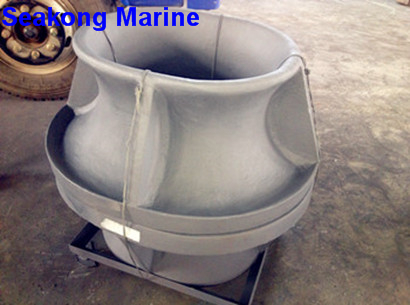

3.CHOCK
Opening size 600x450

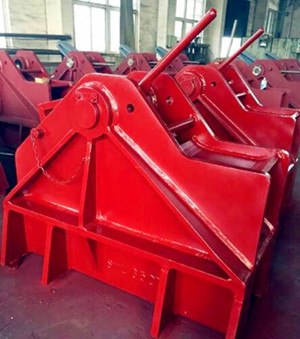

We have DNV & LR & ABS & BV Class Type Approval for SWL100T, SWL200T,SWL250T,SWL350T
