Our quick release mooring hooks are manufactured from high quality material with perfect safety and reliability,enable to suit for high salinity&low tempreture&storm etc harshest marine environments.
The supply range is from SWL30T to SWL250T, each hook of unit is with proof load of 1.5 x SWL. Hooks can be supplied as types of single, double, triple, quadruple, double back-to-back and quadruple back-to-back Also can be in different options including electric, hydraulic and pneumatic release systems.
Manual release and remote release units are available and also can be fitted with load pin and load monitoring system.
For small size QRMH, the unit can be designed without integrated capstan.
All hooks can be designed to suit for Zone 0, Zone 1, Zone 2 hazardous areas and max. surface temperature ( T1,T2,T3,T4,T5,T6 ) of electrical equipments used in explosive atmosphere.

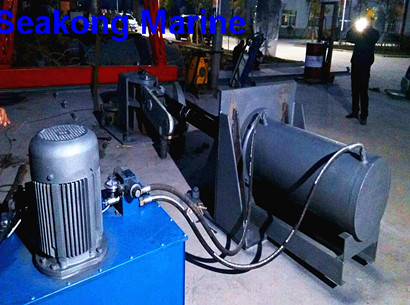

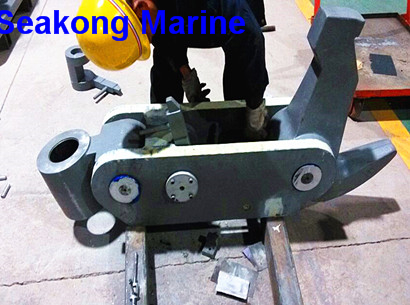

Explosion Proof cert, LR inspection cert, ABS inspection cert, ATEX cert, UDEM cert are all on request,

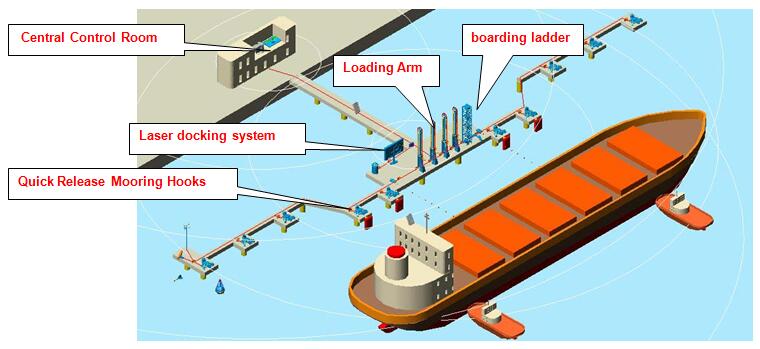

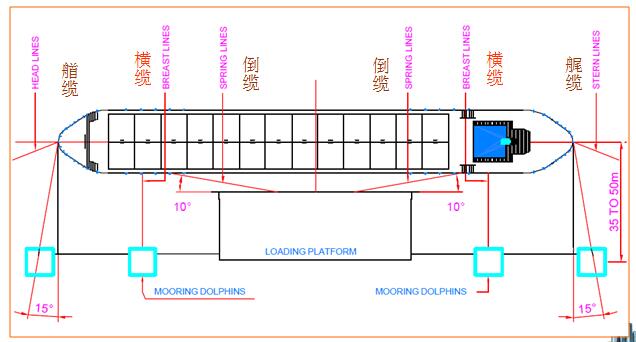

Arrangement Plan Of Quick Release Mooring Hooks

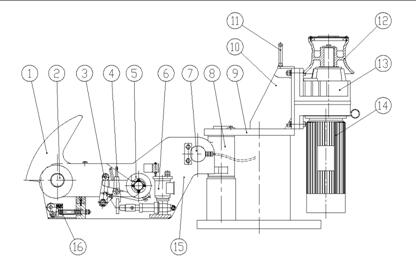

Basic Structure Of Quick Release Mooring Hooks
1. Anchor Hook 2. Hinge Pin 3.L
ocking Mechanism 4. Releasing Mechanism 5.Lever Beam 6.Electric decoupling actuator
7. Load Pin 9. Base 10. Motor Bracket 11. Rope Guide 12. Casptan 13.Rreduction Gears 14. Brake Motor 15. Hook Rack 16. Bumper
Component Pictures Of Quick Release Mooring Hooks

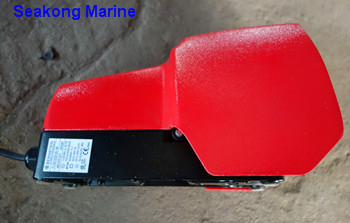

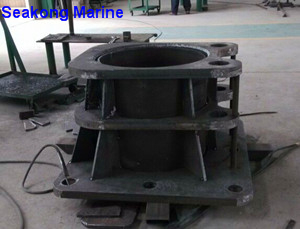

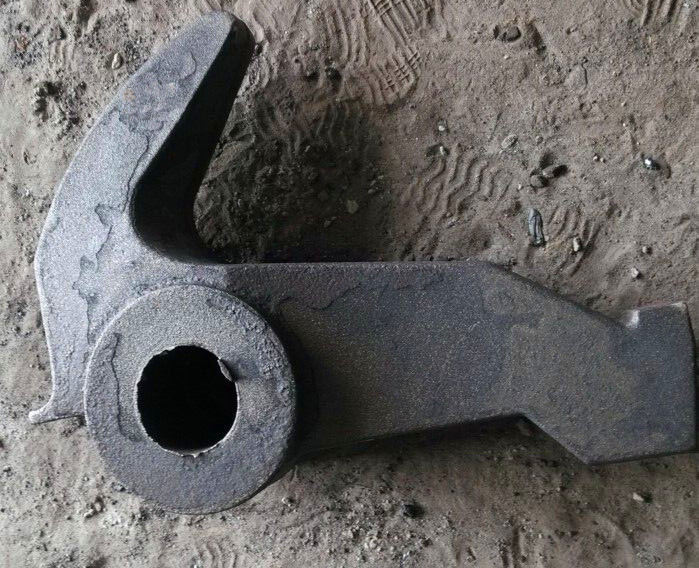

Anchor Hook Base IP66 Foot Switch

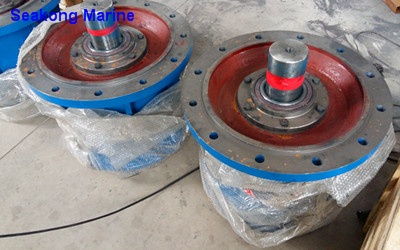

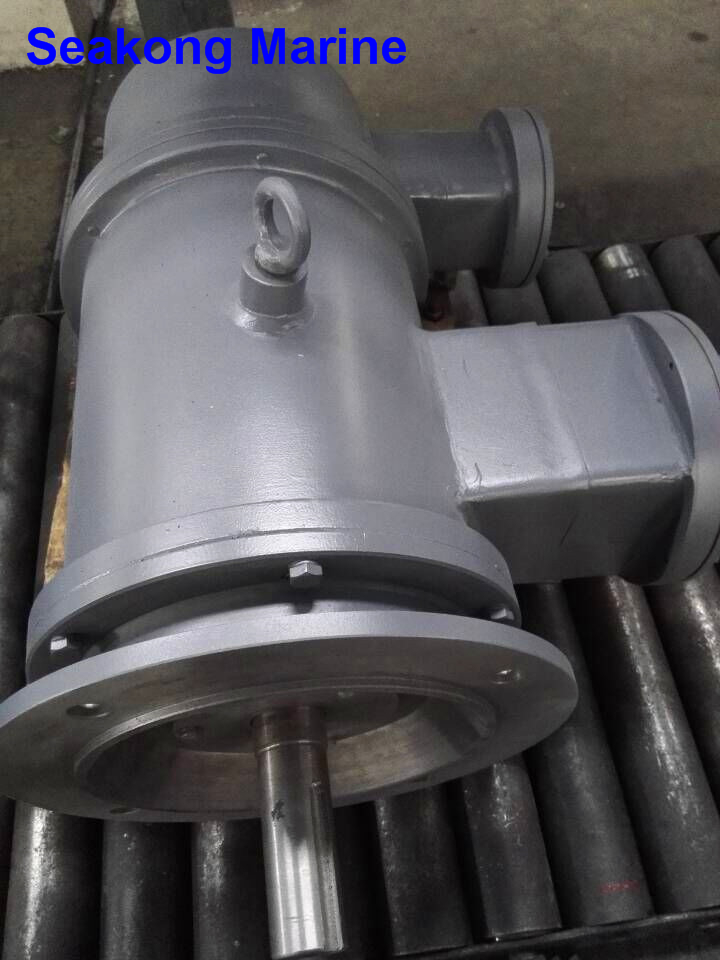

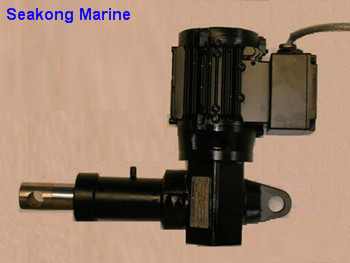

IP66 Motor Reduction Gear Electrical Release Line Actuator

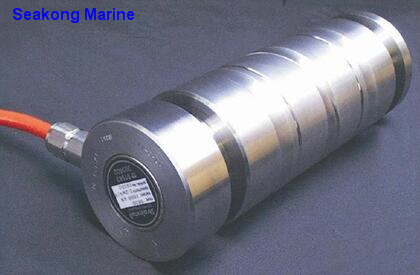

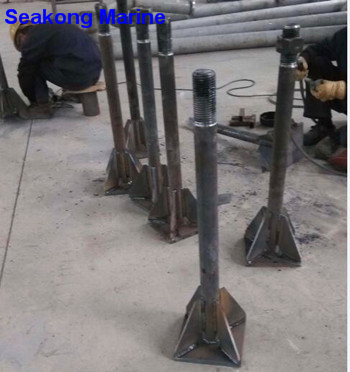

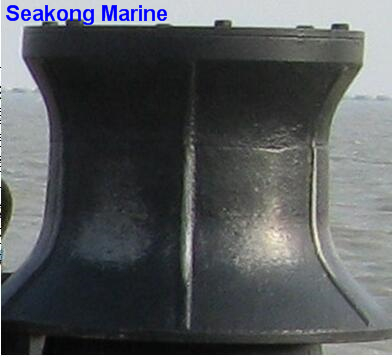

Load Pin Capstan Anchoring Bolt

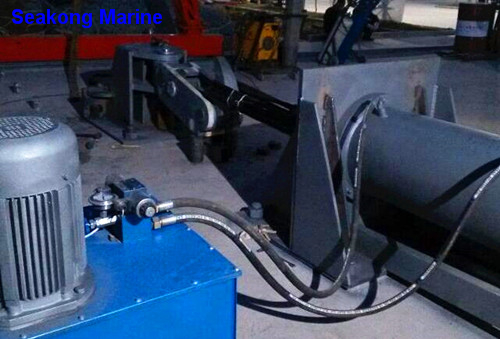

Load Test Of Quick Release Mooring Hooks

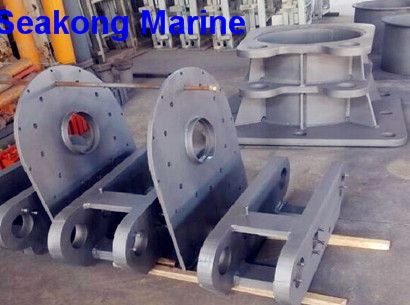

China Quick Release Mooring Hooks Supplier
