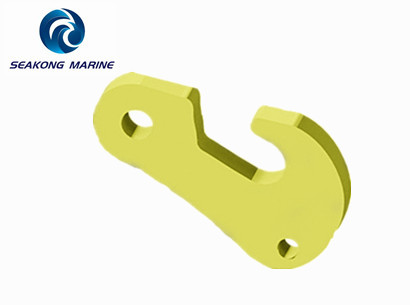

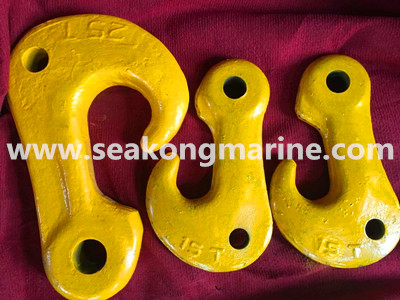

Anchor Line Hook
Anchor Line Hooks were primarily designed for the marine industry. They are most useful in retrieving or setting anchors around marine pipe-laying and construction barges. When retrieving, an extra strong hook is necessary to snag the loop or eye of the anchor buoy cable for it to be wound on the drum of a work boat. When setting anchors, the work boat reaches the desired distance for the barge, and with anchor off of the ocean floor, the work boat begins to release the winch line. When the anchor hook reaches approximately half-way from the stern of the boat, the small hook of the hold back line is inserted into the bottom hole of the anchor line hook. When slackening the winch line further, the hold back line will tighten, causing the anchor line hook to trip or release automatically from the loop of the buoy cable.

MAIN FEATURES
· Range:       SWL20T, SWL25T, SWL30T, SWL50T, SWL80T
· Material:     High Tensile Alloy Forged Steel
· Paint:          One(1) Layer Epoxy Zinc D.F.T. 25mμ.·One (1) Layer Epoxy (Black) D.F.T. 125 mμ., After Shot blasting to SA2.5.
· Certiicate:   CCS,BV,LR,DNV,KR,ABS are request


Download Catalogue_Anchor Link Hook
