Product Details

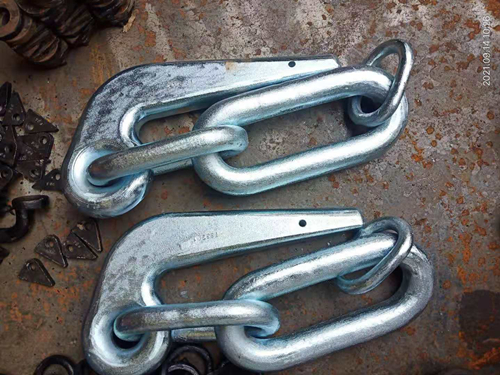

Towing Slips

Is also named Pelican Hook, Wire Pelican, Slip Hook.

A hook that can be opened while under strain by knocking away a lock-ing ring which holds it closed; used to pro-vide an instantaneous release.

Towing Slips (Pelican hooks ) can be used to grasp chain through a long link attached to the bitter end of a chain but they cannot grasp a chain in the middle like a chain stopper.

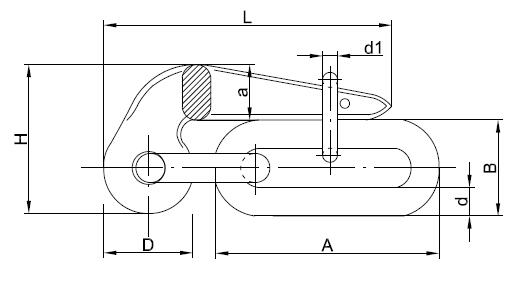

Type	Suit for chain diameter	SWL ton	Proof Load ton	D	d1	L	H	A	a
TS14	14mm	2	4	56	8	182	94	146	35
TS19	19mm	5	10	76	11	247	127	198	48
TS29	29mm	12	24	116	17	377	194	302	73
TS32	32mm	15	30	128	19	416	214	333	80
TS38	38mm	20	40	152	23	494	255	395	95
TS48	48mm	32	59	192	29	624	322	499	120
TS54	54mm	40	68	216	32	702	362	562	135
TS60	60mm	50	81	240	36	780	402	624	150
