Mandal Fairlead Shackle

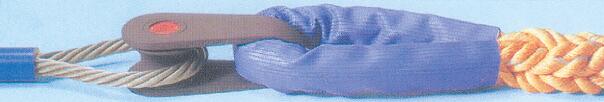

The Mandal Fairlead Shackles are used as mooring shackle with sleek designed to pass through fairlead,they are connected between wire rope and fibre forerunner.
Our Mandal Fairlead Shackles are manufactured from high quality stainless steel and 100% proof load tested.
We offer from MBL90T to MBL180T
MAIN FEATURES
· Manufactured from high quality stainless steel
· SWL range: 30T,40T,45T,55T,60T, MBL range: 90T,120T,140T,165T,180T
· 100% proof load tested
· 3.1 material cert
OPTIONAL FEATURES
· Manufacture from H.D.G high strength alloy steel
· breaking load on request
· 3rd party inspection on request ( CCS,BV,ABS,LR,DNV,RINA )

Download Mandal Fairlead Shackle Catalogue

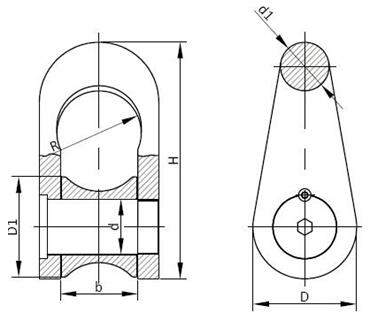

SWL(ton)	d	d1	D1	b	D	H	R	Proof Load(ton)	Breaking Load(ton)
30	60	60	120	66	122	295	38	60	90
40	72	65	120	90	130	325	50	80	120
45	80	70	150	120	150	340	65	90	140
55	85	75	155	120	160	360	65	110	165
60	90	80	170	125	180	390	68	120	180

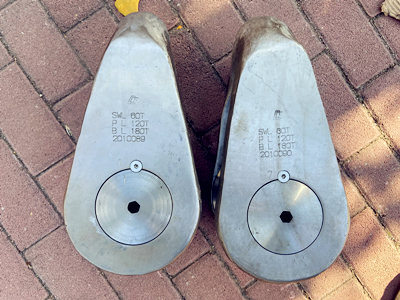

BL180T Mandal Shackle

Product Details

Download Mandal Fairlead Shackle Catalogue

SWL(ton)	d	d1	D1	b	D	H	R	Proof Load(ton)	Breaking Load(ton)
30	60	60	120	66	122	295	38	60	90
40	72	65	120	90	130	325	50	80	120
45	80	70	150	120	150	340	65	90	140
55	85	75	155	120	160	360	65	110	165
60	90	80	170	125	180	390	68	120	180

BL180T Mandal Shackle
