Product Details
Heavy Duty Double Nuts Shackle
MAIN FEATURES
· Material: Manufactured from high tensile alloy steel
· Temperature: -40℃ ~ 200℃
· Safety Factor: 5 times
· Finish: Hot Dip Galvanizing with Stainless Steel Cotter Pin

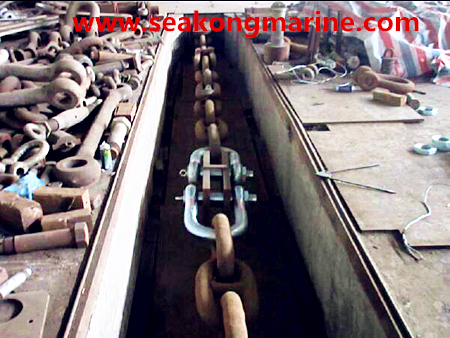

· Certificates: 3.1 Material Cert, Load Test Report, NDT Report
OPTIONAL FEATURES
· Custom Size on request
· ABS/BV Three Party Inspection Cert
undeclared tolerance: + / - 2.5 %
MAIN FEATURES
· Material: Manufactured from high tensile alloy steel
· Temperature: -40℃ ~ 200℃
· Safety Factor: 5 times
· Finish: Hot Dip Galvanizing with Stainless Steel Cotter Pin
· Certificates: 3.1 Material Cert, Load Test Report, NDT Report
OPTIONAL FEATURES
· Custom Size on request
· ABS/BV Three Party Inspection Cert
undeclared tolerance: + / - 2.5 %

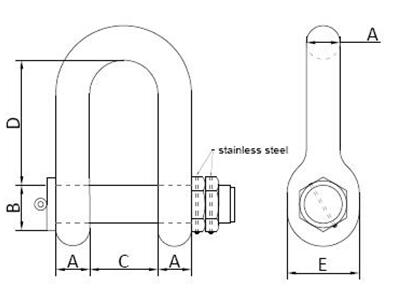

| WLL(ton) | A | B | C | D | E | Weight(kg) |
| 85 | 80 | 90 | 220 | 390 | 178 | 87 |
| 110 | 90 | 102 | 254 | 430 | 210 | 146 |
| 130 | 100 | 114 | 280 | 480 | 235 | 194 |
| 175 | 125 | 133 | 300 | 600 | 265 | 354 |
| 225 | 130 | 146 | 333 | 720 | 305 | 410 |
