Wire Rope Socket
Sockets are used as a connection to attach steel wire rope to fixed point which may be an anchoring system for tube or pipes,anchor wires for dredging materials,anchor cables for oil platforms,fastening points for towing cables or for fastening cables in constructions such as bridges,roofs etc.
Our Wire Sockets are forged from high strength alloy steel and 100% proof load tested.
We have developed -50℃ sockets for low temperature usage.
2.1, 2.2, 3.1 and IACS Certs are on request
MAIN FEATURES
· Manufactured from high quality forging steel
·Suit for 6mm~100mm dia. wire rope
·100% proof load tested
· Hot dip galvanized
OPTIONAL FEATURES
· -40℃, -50℃,-60℃ design temperature on request
· breaking load test on request
· 3rd party inspection on request ( CCS,BV,ABS,LR,DNV,RINA )

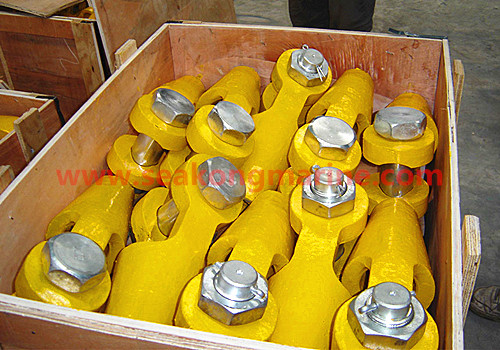

G416 Open Type Socket

Wire Rope Dia.		A	C	D	F	J	L
in	mm	A	C	D	F	J	L
1/4	6	115.8	23.1	17.5	9.7	57	40
5/16~3/8	8~9	123	20.6	20.6	12.7	57	44.5
7/16~1/2	11~12	141.2	25.4	25.4	14.2	64	51
9/16~5/8	14~16	171.5	21.8	21.8	17.5	76	64
3/4	19	202	38.1	38.1	20.6	89	76
7/8	22	235	44.5	44.5	23.9	102	89
1	25	268	50.8	50.8	28.7	114	102
1 1/8	28	300	57.2	57.2	31.8	127	117
1 1/4~1 3/8	31.5~35	335	63.5	63.5	38.1	140	127
1 1/2	38	384	76.2	70	41.4	152	152
1 5/8	42	413	76.2	76.2	44.5	165	165
1 3/4~1 7/8	45~47.5	464	89	89	51	191	178
2~2 1/8	50~53	546	102	95.3	57	216	229
2 1/4~2 3/8	57~60	597	114.3	108	63.5	229	254
2 1/2~2 5/8	63~66	648	127	120.7	73	248	273
2 3/4~2 7/8	70~73	692	133.4	127	79	279	279
3~3 1/8	76~80	737	146	133.4	86	305	286
3 1/4~3 3/8	82~85	784	159	140	92	330	298
3 1/2~3 5/8	89~92	845	171.5	152.4	98.6	356	318
3 3/4~4	95~100	921	191	177.8	108	381	343

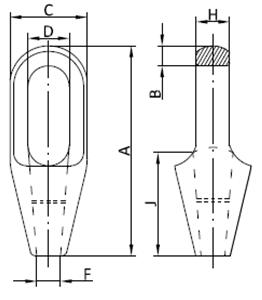

G417 Closed Type Socket

Wire Rope Dia.		A	B	C	D	F	H	J
in	mm	A	B	C	D	F	H	J
1/4	6	114.3	12.7	38	22.4	9.7	13	57
5/16~3/8	8~9	124	16	43	24.6	12.7	18	57
7/16~1/2	11~12	138.2	18	51	30	14.2	22	64
9/16~5/8	14~16	160.3	21	67	36	17.5	25	76
3/4	19	192	27	76	42	20.6	32	89
7/8	22	222.3	32	92	48	23.9	38	102
1	25	251	35	105	58	28.7	44	114
1 1/8	28	279	38	114	65	31.8	51	127
1 1/4~1 3/8	31.5~35	308	41.4	135	71.4	38.1	57	140
1 1/2	38	354	49	135	81	41.4	64	152
1 5/8	42	384	54	146	83	44.5	70	165
1 3/4~1 7/8	45~47.5	438	56	171	95	51	76	191
2~2 1/8	50~53	495	62	194	111	57	83	216
2 1/4~2 3/8	57~60	537	67	216	127	63.5	92	229
2 1/2~2 5/8	63~66	597	79	241	140	73	102	248
2 3/4~2 7/8	70~73	645	79	273	159	79	124	279
3~3 1/8	76~80	686	83	292	171	86	133	305
3 1/4~3 3/8	82~85	743	102	311	184	92	146	330
3 1/2~3 5/8	89~92	787	102	330	197	98.6	159	356
3 3/4~4	95~100	845	108	362	216	108	178	381

Product Details

Wire Rope Dia.		A	C	D	F	J	L
in	mm	A	C	D	F	J	L
1/4	6	115.8	23.1	17.5	9.7	57	40
5/16~3/8	8~9	123	20.6	20.6	12.7	57	44.5
7/16~1/2	11~12	141.2	25.4	25.4	14.2	64	51
9/16~5/8	14~16	171.5	21.8	21.8	17.5	76	64
3/4	19	202	38.1	38.1	20.6	89	76
7/8	22	235	44.5	44.5	23.9	102	89
1	25	268	50.8	50.8	28.7	114	102
1 1/8	28	300	57.2	57.2	31.8	127	117
1 1/4~1 3/8	31.5~35	335	63.5	63.5	38.1	140	127
1 1/2	38	384	76.2	70	41.4	152	152
1 5/8	42	413	76.2	76.2	44.5	165	165
1 3/4~1 7/8	45~47.5	464	89	89	51	191	178
2~2 1/8	50~53	546	102	95.3	57	216	229
2 1/4~2 3/8	57~60	597	114.3	108	63.5	229	254
2 1/2~2 5/8	63~66	648	127	120.7	73	248	273
2 3/4~2 7/8	70~73	692	133.4	127	79	279	279
3~3 1/8	76~80	737	146	133.4	86	305	286
3 1/4~3 3/8	82~85	784	159	140	92	330	298
3 1/2~3 5/8	89~92	845	171.5	152.4	98.6	356	318
3 3/4~4	95~100	921	191	177.8	108	381	343

G417 Closed Type Socket

Wire Rope Dia.		A	B	C	D	F	H	J
in	mm	A	B	C	D	F	H	J
1/4	6	114.3	12.7	38	22.4	9.7	13	57
5/16~3/8	8~9	124	16	43	24.6	12.7	18	57
7/16~1/2	11~12	138.2	18	51	30	14.2	22	64
9/16~5/8	14~16	160.3	21	67	36	17.5	25	76
3/4	19	192	27	76	42	20.6	32	89
7/8	22	222.3	32	92	48	23.9	38	102
1	25	251	35	105	58	28.7	44	114
1 1/8	28	279	38	114	65	31.8	51	127
1 1/4~1 3/8	31.5~35	308	41.4	135	71.4	38.1	57	140
1 1/2	38	354	49	135	81	41.4	64	152
1 5/8	42	384	54	146	83	44.5	70	165
1 3/4~1 7/8	45~47.5	438	56	171	95	51	76	191
2~2 1/8	50~53	495	62	194	111	57	83	216
2 1/4~2 3/8	57~60	537	67	216	127	63.5	92	229
2 1/2~2 5/8	63~66	597	79	241	140	73	102	248
2 3/4~2 7/8	70~73	645	79	273	159	79	124	279
3~3 1/8	76~80	686	83	292	171	86	133	305
3 1/4~3 3/8	82~85	743	102	311	184	92	146	330
3 1/2~3 5/8	89~92	787	102	330	197	98.6	159	356
3 3/4~4	95~100	845	108	362	216	108	178	381
